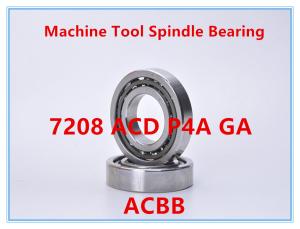

7208 ACD P4A GA Angular Contact Ball Bearing

Name: 7208 ACD P4A GA Angular Contact Ball Bearing
Brand: ACBB
Price: 1 USD

Quality 7208 ACD P4A GA Angular Contact Ball Bearing wholesale

Brand Name : ACBB

Model Number : 7208 ACD P4A GA

Certification : ISO9001 IATF16949

Place of Origin : China

MOQ : 50 PCS

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Packaging Details : Company brand packaging.

Product name : Angular Contact Ball Bearing

Model number : 7208 ACD P4A GA

Characteristic : High speed and high rigidity

Rotational speed : 12000RPM-16000RPM

Angle : ACD

Preload : Pre-tight in the middle

Rolling Body : Steel Ball/Ceramic Ball

Sealing structure : Open type/Double-sided seal

Contact Now

7208 ACD P4A GA

Angular contact ball bearing 7208 ACD P4A GA (in addition to DB, DT, TBT, QBC and other matching methods) is mainly used on the spindle of CNC machine tools. The speed reaches 4000 to 6000 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.

72 series angular contact ball bearing
Bearing No	Dimensions(mm)			(KN) BasicRatedload		(RPM) Ball speed limit		(RPM) Ceramic Ball limit speed		(N) Preload
Bearing No	d	D	B	Cr	Cor	Grease Lubrication	Oil Lubrication	Grease Lubrication	Oil Lubrication	A	B	C
7200C	10	30	9	5.85	2.90	56000	85000	7000	110000	25	92	198
7200AC	10	30	9	5.60	2.80	50000	75000	60000	90000	31	139	312
7201C	12	32	10	7.65	3.90	50000	75000	63000	95000	35	124	264
7201AC	12	32	10	7.35	3.75	45000	67000	56000	85000	47	191	420
7202C	15	35	11	9.65	5.00	45000	67000	56000	85000	47	165	347
7202AC	15	35	11	9.30	4.80	40000	60000	48000	70000	65	256	555
7203C	17	40	12	10.80	5.85	38000	56000	50000	75000	53	186	391
7203AC	17	40	12	10.40	5.60	36000	53000	43000	63000	75	289	626
7204C	20	47	14	14.60	8.15	32000	48000	43000	63000	74	252	527
7204AC	20	47	14	14.00	7.80	30000	45000	36000	53000	105	393	843
7205C	25	52	15	15.60	9.30	28000	43000	36000	53000	79	269	562
7205AC	25	52	15	15.00	9.00	26000	40000	32000	48000	113	420	901
7206C	30	62	16	23.20	14.60	24000	38000	30000	45000	122	412	856
7206AC	30	62	16	22.00	14.00	22000	36000	26000	40000	175	637	1357
7207C	35	72	17	25.50	18.00	20000	34000	26000	40000	136	454	942
7207AC	35	72	17	24.50	17.00	19000	32000	22000	36000	197	714	1521
7208C	40	80	18	32.00	22.40	18000	30000	24000	38000	176	584	1204
7208AC	40	80	18	30.50	21.60	17000	28000	20000	36000	259	912	1925

7208 ACD P4A GA Angular Contact Ball Bearing
